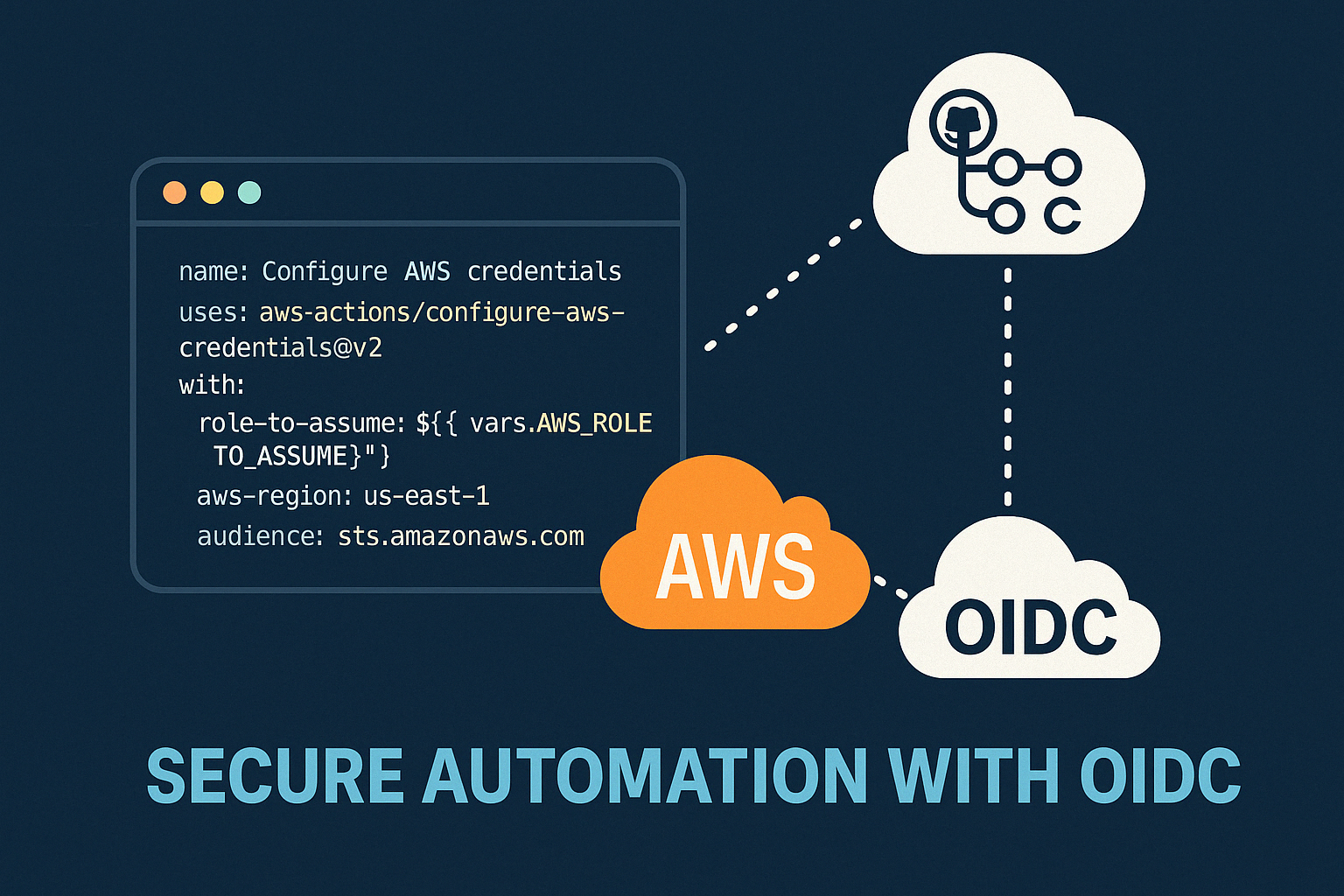

Securing CI/CD Pipelines with GitHub OIDC and AWS IAM

Modern teams that embrace DevOps face a persistent challenge: how do you empower developers to deliver quickly and securely to AWS, without ever exposing static credentials or compromising security? The answer lies in automation, least privilege, and the right blend of open source tooling—principles that have guided the creation of the gha-aws-oidc-bootstrap project.

This repository is more than just a collection of scripts and templates. It’s a living example of how to bootstrap secure, cloud-native CI/CD pipelines using GitHub Actions, AWS IAM, and OpenID Connect (OIDC)—all while enforcing security at every step.

You can find the project here: https://github.com/PaulDuvall/gha-aws-oidc-bootstrap/

Overview

The gha-aws-oidc-bootstrap project leverages a robust, Jinja2-based workflow for secure, scalable AWS IAM integration with GitHub Actions. This approach minimizes manual steps, enforces best practices, and ensures every repository always has the correct configuration.

From Static Secrets to Ephemeral Trust

There are varying levels of risk when it comes to AWS credentials in CI/CD:

• Absolute worst: Hardcoding AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY directly in your repository or codebase. This exposes your credentials to anyone with repo access and is a critical security vulnerability—you can almost guarantee your AWS account will become compromised, most likely through automated scripts in minutes or even seconds. This can also very easily happen by accident when builders store credentials in files that they mistakenly commit to the repository.
• Still risky: Storing AWS_ACCESS_KEY_ID and AWS_SECRET_ACCESS_KEY as GitHub Actions Secrets. While better than hardcoding, this is still risky—if the repo is compromised, those secrets can be stolen, are not automatically rotated, and may be over‑permissioned or not regularly audited.

Gone are the days of either hardcoding or storing AWS credentials in GitHub Actions Secrets. With OIDC, every workflow run gets its own short‑lived, tightly‑scoped credentials—no more static secrets to rotate, audit, or worry about leaking. This shift not only aligns with AWS and GitHub best practices, but also enables true zero trust and least privilege in your automation.

OIDC Provider: Single Source of Trust

When setting up OIDC integration between GitHub Actions and AWS, your AWS account needs an OIDC identity provider for GitHub (token.actions.githubusercontent.com). AWS allows only one such provider per account.

• If this provider already exists, the setup process will detect and reuse it for all future OIDC-enabled workflows and roles—ensuring a single, consistent trust anchor for GitHub Actions.
• If it doesn’t exist yet, the setup script (or CloudFormation stack) will create it for you. This provider establishes the trust relationship between AWS and GitHub, enabling secure, short‑lived credential issuance to your workflows.

You can view and manage this provider in the AWS Console by navigating to IAM > Identity providers, or by running:

aws iam list-open-id-connect-providers

This design means you never have to manage multiple OIDC providers for GitHub in the same account—simplifying configuration and reducing risk.

Step-by-Step: Automated Secure Setup and Usage

The following steps walk you through setting up secure, automated OIDC authentication for one or more GitHub repositories using this project. The process is managed by the run.sh script, which provides a unified interface for setup, deployment, and management.

1. Clone the Repository

git clone https://github.com/PaulDuvall/gha-aws-oidc-bootstrap.git
cd gha-aws-oidc-bootstrap

2. Configure AWS CLI Credentials

aws configure
# Ensure your credentials have IAM and CloudFormation permissions

3. Running the Setup and Deployment Script

You can run the script with or without a GitHub Personal Access Token (PAT):

• The script will output the IAM Role ARN and clear instructions for using it in your GitHub Actions workflow.
• You can either add the ARN to a repository variable manually (recommended for teams) or reference the ARN directly in your workflow YAML (suitable for solo use).

Without a GitHub token:

bash run.sh --github-org <your_org> --region us-east-1

With a GitHub PAT: Automatically sets the repo variable for you (recommended for teams):

export GITHUB_TOKEN=github_pat_XXXXXXXXXXXX
bash run.sh --github-org <your_org> --region us-east-1 --github-token $GITHUB_TOKEN

Note: The script always provides both options for referencing the IAM Role in your workflow, regardless of whether you use a token. You can choose to set a repository variable or reference the ARN directly in your workflow YAML as best fits your needs.

Example for this repository:

bash run.sh --github-org PaulDuvall --region us-east-1

4. Integrate into Your GitHub Actions Workflow

After running the setup script, you can integrate the IAM Role into your GitHub Actions workflow in either of two ways:

Option 1: Use a repository variable (recommended for teams)

1. Set a GitHub Actions variable in your repository named GHA_OIDC_ROLE_ARN with the IAM Role ARN output by the script.

Reference that variable in your workflow YAML:

permissions:
  id-token: write
  contents: read
jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Assume OIDC Role
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: ${{ secrets.GHA_OIDC_ROLE_ARN }}
          aws-region: us-east-1

Option 2: Reference the IAM Role ARN directly (suitable for solo use or quick setup)

permissions:
  id-token: write
  contents: read
jobs:
  deploy:
    runs-on: ubuntu-latest
    steps:
      - name: Assume OIDC Role
        uses: aws-actions/configure-aws-credentials@v4
        with:
          role-to-assume: arn:aws:iam::123456789012:role/GitHubActionsOIDCRole
          aws-region: us-east-1

Replace the ARN above with the value output by the script. Both approaches are always available, regardless of whether you use a GitHub token.

Example: See verify_oidc.yml for a complete workflow using the generated IAM role.

For more details, see the aws-actions/configure-aws-credentials action and GitHub Actions OIDC with AWS documentation.

Inspect the Trust or Permissions Policy

To inspect the trust or permissions policy that the generated IAM role uses, run (e.g, my <ROLE_NAME> is github-oidc-role-PaulDuvall-gha-aws-oidc-bootstrap):

aws configure # Ensure your credentials have IAM and CloudFormation permissions
aws iam get-role --role-name <ROLE_NAME> --query 'Role.AssumeRolePolicyDocument'
aws iam list-attached-role-policies --role-name <ROLE_NAME>
aws iam list-role-policies --role-name <ROLE_NAME>

Secure by Design: OIDC and IAM Roles

By configuring GitHub’s OIDC integration with AWS IAM roles, you:

• Eliminate static secrets: No more long‑lived AWS keys in GitHub.
• Enforce least privilege: IAM roles can be tightly scoped to only what CI/CD needs.
• Enable short‑lived credentials: AWS STS issues ephemeral tokens—automatically rotated per workflow run.
• Align with Zero Trust: Authentication is based on signed OIDC identity tokens, not passwords or keys.

Security Reminder:

Never hardcode AWS credentials or store them as long‑lived secrets in your repositories. Hardcoded or static credentials are a leading cause of cloud breaches—they are easily leaked, rarely rotated, and often over‑permissioned. OIDC with IAM roles ensures every workflow run gets short‑lived, tightly‑scoped credentials, aligning with AWS and GitHub security best practices.

Automating Secure OIDC Integration for Multiple GitHub Repositories with AWS

OpenID Connect (OIDC) is the modern, secure way to connect GitHub Actions workflows to AWS without long-lived credentials. But what if you want to enable OIDC authentication across several repositories in your organization, and you want the setup to be repeatable, robust, and easy for anyone to follow?

In this post, I’ll show you how to automate OIDC authentication for multiple GitHub repositories using a single AWS CloudFormation stack and a cross-platform Bash script. This approach minimizes manual steps, enforces best practices, and ensures every repository always has the correct configuration.

Why Automate OIDC Setup Across Multiple Repos?

Manually configuring IAM roles and GitHub repository variables for each repo is tedious and error-prone. By automating the process, you:

• Reduce the risk of misconfiguration
• Make onboarding new repos trivial
• Ensure all repos use the latest security settings
• Save time as your organization and CI/CD footprint grows

How the Automation Works

1. CloudFormation Stack

A single stack creates an IAM role with a trust policy that allows OIDC authentication from all the GitHub repositories you specify. The trust policy uses the correct repo:<org>/<repo>:* subject format for each repository.

2. Bash Setup Script

The script:

• Deletes the GHA_OIDC_ROLE_ARN variable in each repo (if it exists) before setting it
• Uses the GitHub API to create the variable via POST, and PATCHes if it already exists
• Works on macOS and Linux (portable curl/sed logic)
• Handles both classic and fine-grained GitHub tokens
• Prints debug output for each step (never exposing secrets)

IAM Role Trust and Permissions Configuration

Trust Policy Example

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Federated": "arn:aws:iam::<account-id>:oidc-provider/token.actions.githubusercontent.com"
      },
      "Action": "sts:AssumeRoleWithWebIdentity",
      "Condition": {
        "StringEquals": {
          "token.actions.githubusercontent.com:aud": "sts.amazonaws.com"
        },
        "StringLike": {
          "token.actions.githubusercontent.com:sub": [
            "repo:PaulDuvall/gha-aws-oidc-bootstrap:*",
            "repo:PaulDuvall/llm-guardian:*",
            "repo:PaulDuvall/owasp_llm_top10:*"
          ]
        }
      }
    }
  ]
}

Permissions Policy Example

Note: This is an example policy for S3 access. The automation does not hardcode these permissions—you should tailor the policy to your workflow’s needs (e.g., S3, CloudFormation, Lambda). Replace my-ci-artifacts-bucket with your actual bucket name or target resource.

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": ["s3:PutObject", "s3:GetObject"],
      "Resource": "arn:aws:s3:::my-ci-artifacts-bucket/*"
    }
  ]
}

IAM Policy Management with the policies/ Directory

A key feature of this project is the policies/ directory, which allows you to manage AWS IAM permissions for the OIDC role in a modular, auditable way—across one or many repositories.

• How it works:
  • Place one or more IAM policy JSON files (e.g., lambda.json, s3-readonly.json) in the policies/ directory.
  • When you run run.sh, the script automatically attaches all policy files in policies/ to the IAM OIDC role, making them effective for all repositories the role trusts.
  • You can add, edit, or remove policy files at any time. To apply changes, simply re-run run.sh.
• Multi-repo support:
  • The IAM role and its attached policies can be used by any number of repositories in your organization, as defined by the trust policy. This enables a single, centrally managed set of AWS permissions for all your CI/CD workflows.
  • Policy files should only define AWS permissions—not GitHub repo logic. Repository access is controlled by the trust policy, not by these files.
• Best practices:
  • Never scope IAM policies to a single GitHub repository. Instead, use the trust policy to control which repos can assume the role.
  • Keep your policies minimal and auditable. Remove any files you don't need (principle of least privilege).
  • See policies/README.md for more details and examples.

Example: To grant Lambda permissions, add a lambda.json file like:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "lambda:InvokeFunction",
        "lambda:UpdateFunctionCode",
        "lambda:GetFunction"
      ],
      "Resource": "arn:aws:lambda:us-east-1:<your-account-id>:function:<your-function-name>"
    }
  ]
}

Using a Fine-Grained GitHub Personal Access Token (PAT)

To use the OIDC setup script, you must provide a GitHub Personal Access Token (PAT) with the correct permissions. For maximum security and compliance, it is strongly recommended to use a fine-grained PAT with only the minimum required repository access and permissions.

• Required permissions:
  • Actions: Read and write
  • Variables: Read and write
  • Metadata: Read-only
• Recommended:
  • Administration: Read and write (for managing webhooks, etc.)
  • Contents: Read-only (unless you want to automate file changes)

See the full guide: docs/github_fine_grained_pat_setup.md

• When running the setup, pass your fine-grained PAT as the --github-token argument to run.sh.
• The script uses this token to set repository variables and manage OIDC integration securely across all selected repositories.

Tip: If your organization enforces SSO, remember to authorize the token for SSO access after creation.

Using the Tool: GitHub Token Requirements

To use this automation, you’ll need to provide a GitHub Personal Access Token (PAT) when prompted by the run.sh script. This token is required to set repository variables and manage GitHub Actions configuration programmatically.

How to create your GitHub token:

1. Go to GitHub > Settings > Developer settings > Personal access tokens
2. Click "Generate new token" (classic) or "Fine‑grained token"
3. Give your token a descriptive name and set an expiration date
4. Required scopes:
   • For classic tokens: repo (for private repos), workflow, and admin:repo_hook
   • For fine‑grained tokens: access to the target repository with permissions for "Actions" (Read and Write), "Variables" (Read and Write), and "Secrets" (if needed)
5. Copy the token (you won’t be able to see it again)

How it works:

• When you run the setup with run.sh, it will prompt you to paste your GitHub token. This enables the script to set the necessary repository variables (such as GHA_OIDC_ROLE_ARN) and configure your GitHub Actions workflows securely and automatically.
• If secrets or tokens need to be persisted in AWS, the automation uses AWS SSM Parameter Store with SecureString for encryption and secure access.

By automating AWS credential management with GitHub OIDC and IAM, you eliminate static secrets, enforce least privilege, and empower your teams to deliver software rapidly and securely.

References

• GitHub Actions OIDC
• AWS OIDC Trust Policy
